(8,11 € + 20% DPH)

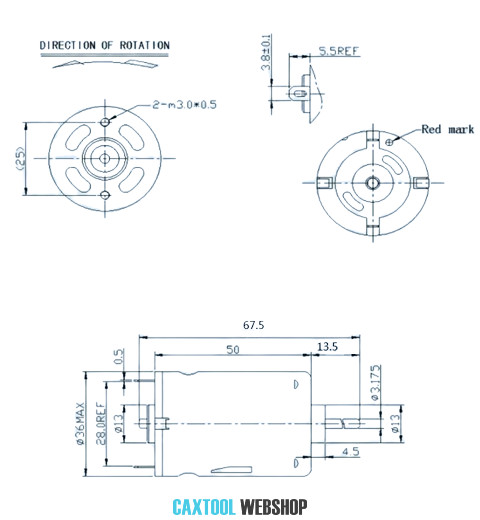

Specification:DC 3V: No-load speed 11800 rpm No-load current 1.6ADC 6V: No-load speed 23600 rpm No-load current 2.2A. (rated voltage)DC 7.4V: No-load speed 28200 rpm No-load current 2.4ADC 9V: No-load speed 35000 rpm No-load current 3A. (will heat up if used for a long time)Appearance and installation dimensions must meet the requirements of the drawing (see the figure above)Temperature: 20℃- 35℃Humidity: 65%±5%RHRated test voltage: 6.0VDCNo-load current: 2.2A(max)No-load speed: 23600±10%rpmStalling torque: voltage between terminals: 6.0V≥1000g.cmStalling current: voltage between terminals: 6.0V≥12ADirection of rotation: CCW (motor output shaft to the body)Abnormal sound: no abnormal sound when the motor is running at no loadShaft bend: ≤0.02mmShaft extension size (protrusion): 9.0±0.5mmVoid: 0.05-0.40mm
